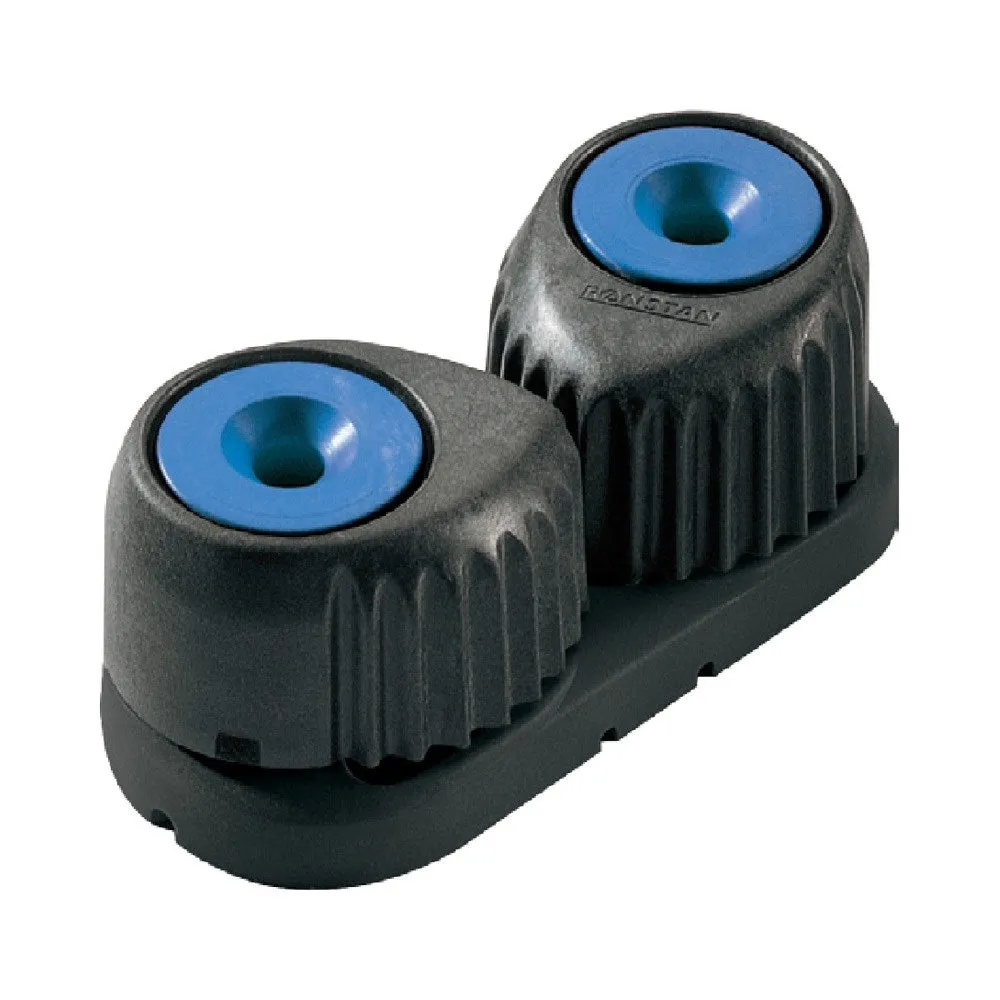

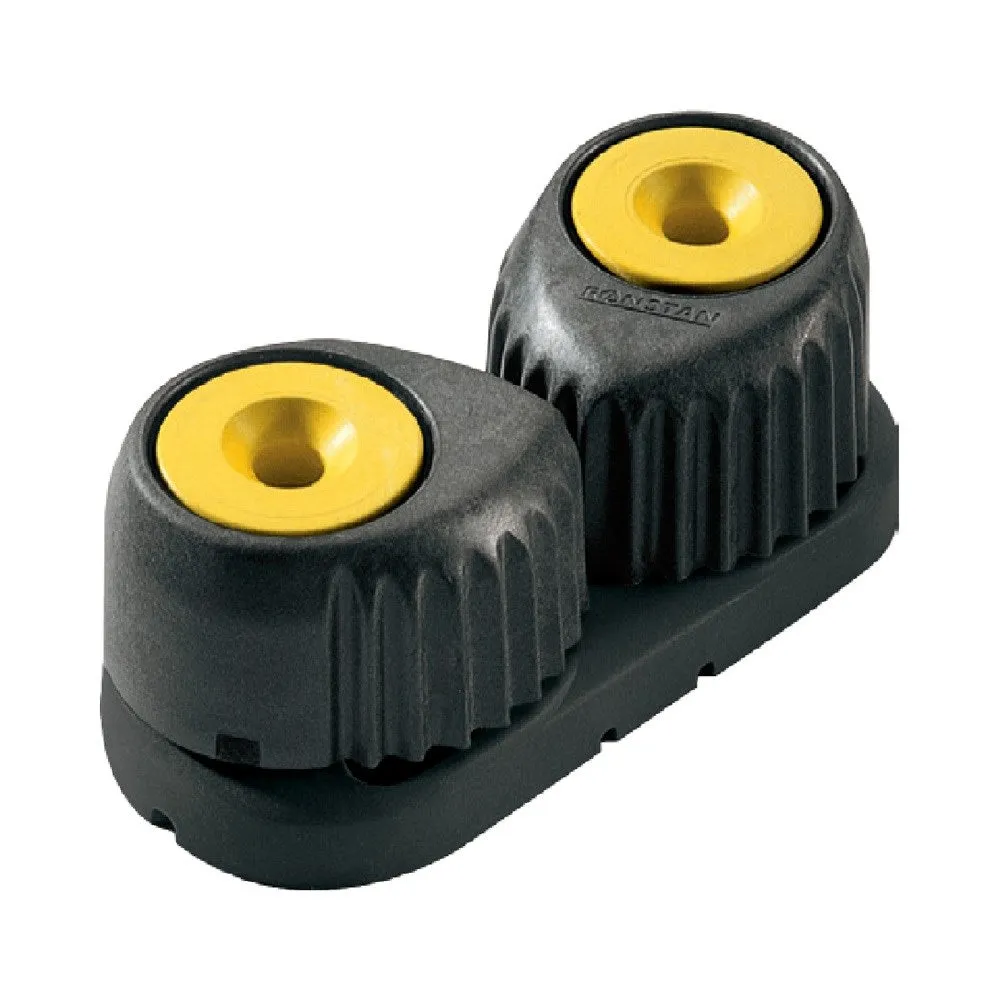

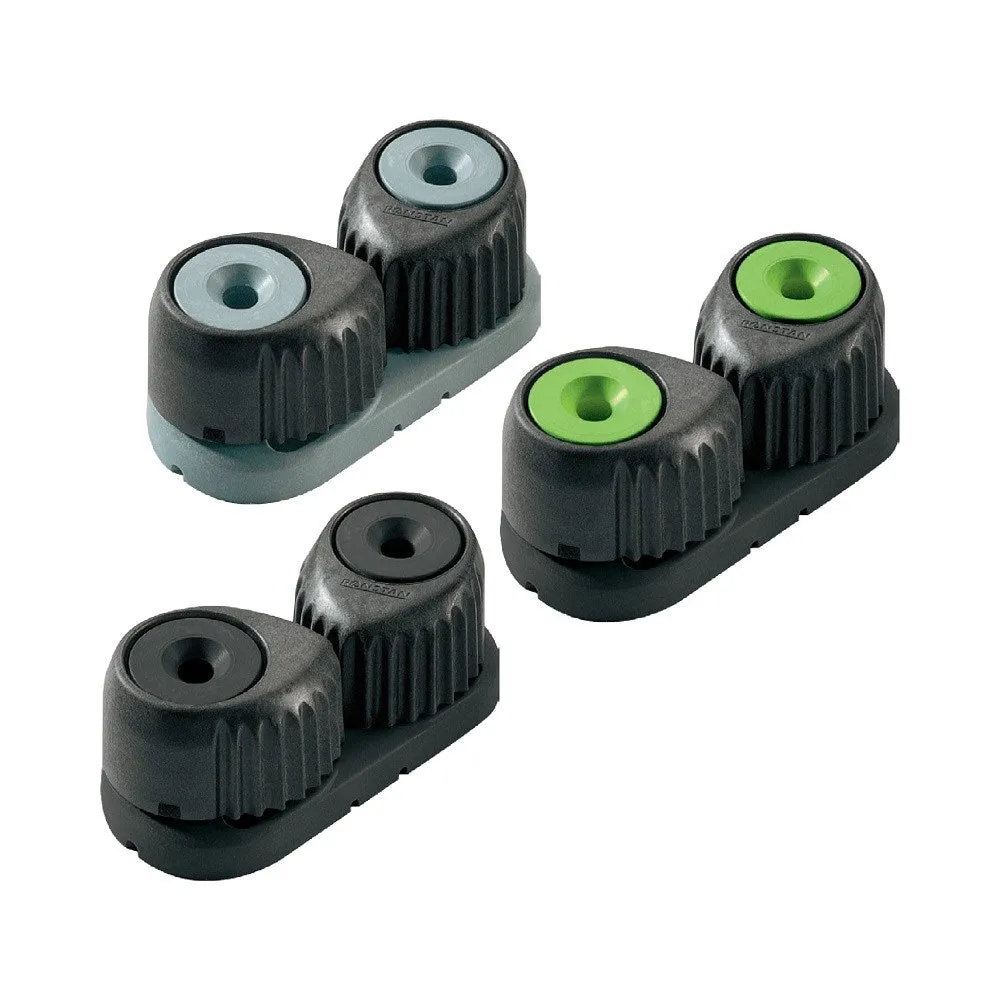

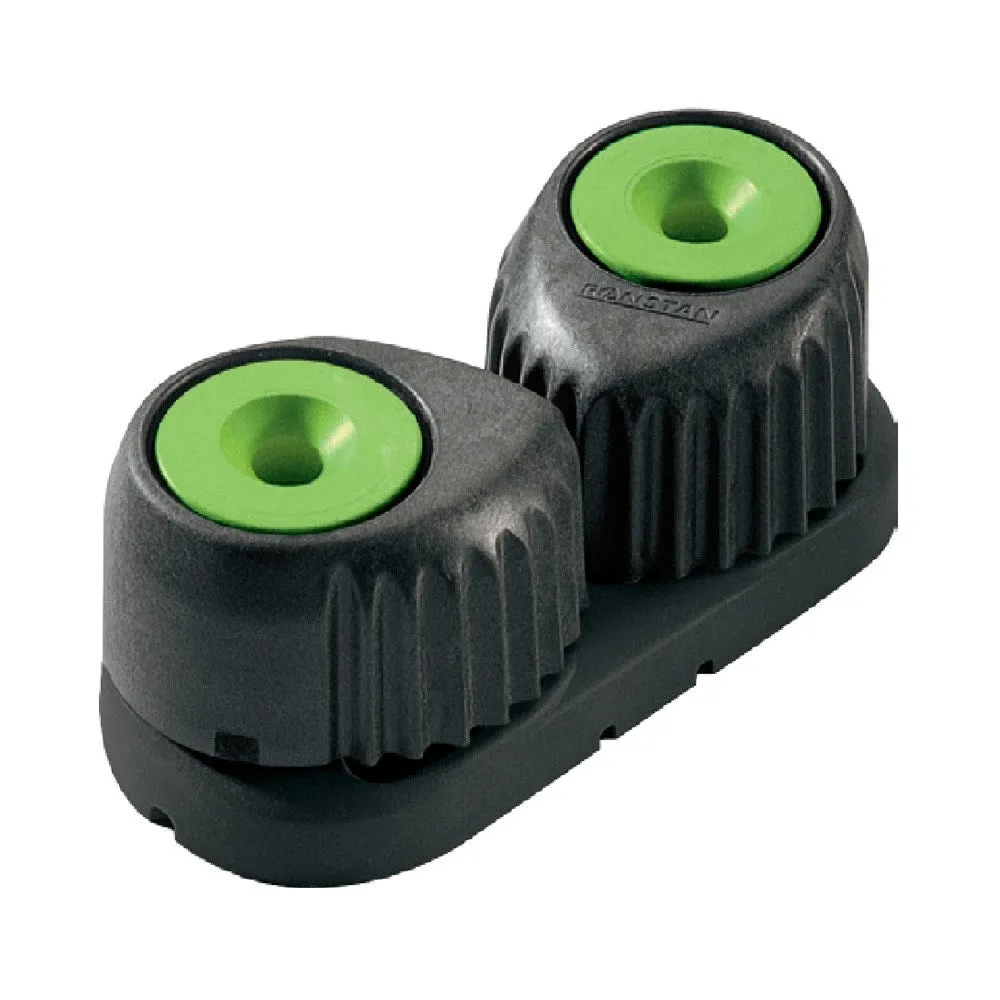

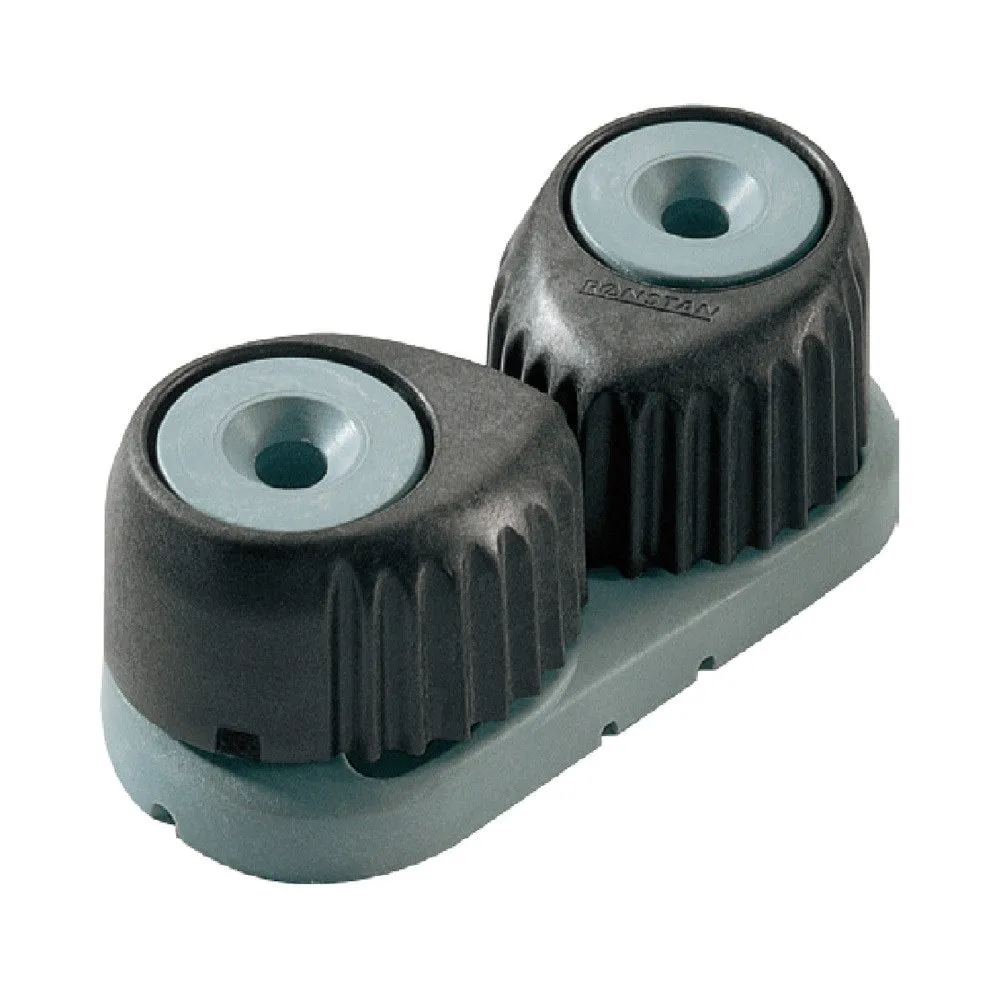

Ronstan Carbon Fibre C-Cleat / Cam Cleat, Large
RF5420, RF5420B, RF5420Y, RF5020, RF5420G, RF5420R
- Design, materials selection and advanced manufacturing methods combine to deliver superior strength and holding power, light weight and corrosion resistance
- Cam profile and multi-coil spring minimise line entry and release effort
- Carbon fibre composite cam material provides maximum resistance to heat and abrasion
- Unique self-cleaning, self-lubricating slotted bearings ensure consistent high performance even when subjected to high static loads
Applications
- Range of cleats for all requirements including control lines, jib sheet and mainsheet cleating
Materials
- Carbon fibre composite cams
- Long strand glass fibre reinforced polymer base
- PTFE impregnated Acetal slotted bearing
- Stainless steel multi-coil spring
Specifications
- Rope ?: 6 - 16 mm
- Height: 35.0 mm
- Width: 41.0 mm
- Length: 88.0 mm
- Fastener ?: M6 mm
- Fastener Hole Centres: 51.0 mm
- MWL: 230 kg
- BL: 460 kg
- Weight: 110 g
